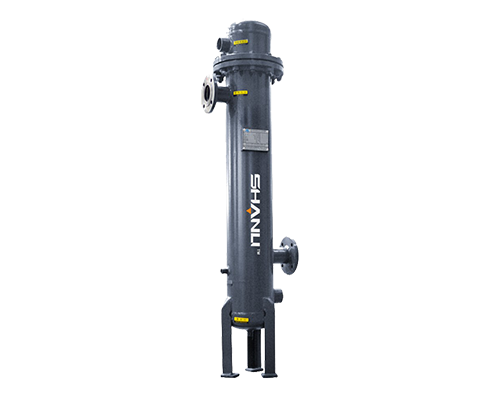

Water-Cooled Air Cooler

Working condition and technical data
inlet air pressure         0.6-1.0Mpa
inlet air temperature         ≤140℃
outlet air temperature         ≤45℃
Cooling water inlet temperature     ≤32℃
Cooling water inlet pressure   0.2-0.4Mpa
*Special conditions of use may be customized

Download PDF Submit your Inquiry

Registration
SAGL series of high efficient air cooler is a main air compressor supplementary compressor can be cooled. It use high efficiency finned copper tube/stainless steel pipe, with small size, high cooling efficiency, using convenient and other characteristics, which can be used under high temperature, high humidity and heavy dust environment.

Product specifications

model Air capacity
（Nm3/min） 		Water consumption
（m3/h） 		Air connection
diameter 		Cooling water
pipe diameter 		height
(mm) 		Cylinder diameter
（mm） 		weight
（kg）
SAHL-0.5NW 0.65 0.3 G1/2" Rc1/2" 955 ф89 28
SAHL-1NW 1.2 0.5 G1" Rc1 1055 ф89 29
SAHL-2NW 2.5 1 G1" Rc1" 1305 ф108 34
SAHL-3NW 3.6 1 G1" Rc1" 1305 ф108 34
SAHL-4.5NW 5.0 1.5 G1-1/2" Rc1" 1330 ф159 58
SAHL-6NW 6.8 1.5 G1-1/2" Rc1" 1330 ф159 58
SAHL-8NW 8.5 3 G2" Rc1-1/2" 1780 ф159 73
SAHL-10NW 10.9 3 G2" Rc1-1/2" 1780 ф159 73
SAHL-12NW 12.8 3 G2" Rc1-1/2" 1780 ф159 73
SAHL-15NW 16 4.5 DN65 Rc2" 1657 ф219 120
SAHL-20NW 22 6 DN65 Rc2" 1657 ф219 125
SAHL-25NW 26.8 9 DN80 Rc2" 1663 ф273 189
SAHL-30NW 32 9 DN80 Rc2" 1663 ф273 182
SAHL-40NW 43.5 12 DN100 Rc2-1/2" 2023 ф273 213
SAHL-50NW 53 15 DN100 Rc2-1/2" 2087 ф325 218
SAHL-60NW 67 18 DN125 Rc2-1/2" 2087 ф325 240
SAHL-80NW 90 24 DN125 Rc2-1/2" 2287 ф325 263
SAHL-100NW 110 30 DN150 Rc3" 2413 ф377 370
SAHL-120NW 130 35 DN150 DN100 2520 ф412 450
SAHL-150NW 160 45 DN200 DN100 2620 ф412 495
SAHL-200NW 210 60 DN200 DN100 2845 ф462 637
SAHL-250NW 260 75 DN250 DN125 2910 ф512 772
SAHL-300NW 310 90 DN250 DN125 3210 ф512 850


Optional Accessories

  • zero gas consumption drainer
  • Not limited to this
