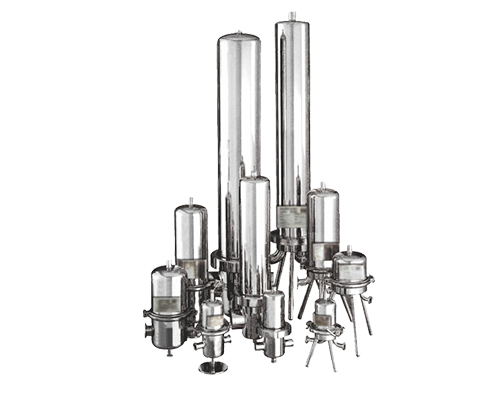

Sterilization Filter

Working condition and technical data
inlet air pressure          0.6-1.0MPa
inlet air temperature         ≤130℃
the initial pressure drop       ≤0.01MPa
Filtration accuracy         ≤1um
*Special conditions of use may be customized

Download PDF Submit your Inquiry

Registration
This series of products are made with refined sanitary stainless steel filter housing,PTEE sterilization filter element, widely use in food, beverages, luxury goods, biotechnology, pharmaceutical, the electronics industry and other fields.
item
model 		SAGL-1CJ SAGL -3CJ SAGL -6CJ SAGL -10CJ SAGL -15CJ SAGL-20CJ
Air capacity
（Nm³/min） 		1.2 3.6 6.8 10.9 16 22
Element qty 1 1 1 1 1 1
Air connection pipe diameter G1/2" G1" G1-1/2″ G2" DN50 DN65
height（mm） 340 340 570 820 950 1080
air inlet spacing（mm） 180 180 240 240 240 260


Note: sterilization filter need supporting using SLAF-*ZQ type steam filters. Maximum steam sterilization is 130℃，normal filtration temperature is <80℃.It is recommended to use matching steam filter (maximum steam temperature ≤ 125 ℃)

Optional Accessories

    • Sterilization filter element
    • Not limited to this
