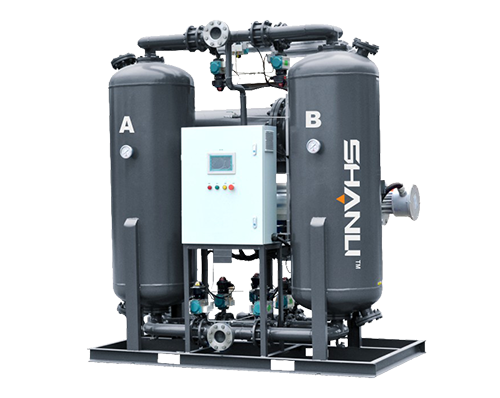

Heated Blower Desiccant Air Dryer With Air Purge Type

Working condition and technical data
Maximum inlet air temperature:45℃
Pressure range:0.5-1.0Mpa
Pressure dew point:-20℃ ~ -40℃
Regeneration gas consumption:≤3%
Maximum cooling water inlet temperature:38℃
Inlet oil content:≤0.1PPm
Control mode: PLC control
Power supply: AC 380V / 220 V / 50 Hz
Period: T = 8h
Design condition: inlet temperature: 38 ℃
Working pressure: 0.7MPa
Inlet cooling water temperature: 32 ℃
Suction inlet condition of blower: 35 ℃ (RH = 45%)
Pressure loss: ≤ 3% of design pressure

Download PDF Submit your Inquiry

Registration

Characteristics of heated blower desiccant air dryer

  • High efficiency and energy saving
  • The pressure dew point can reach - 40 ℃
  • It is equipped with imported brand PLC controller to realize chain function;
  • High efficiency blower
  • High quality switching valve, stable and reliable, can ensure the integrity of the working process and prolong the working life of components;
  • Special adsorbent with high hygroscopicity is selected with uniform shape and size, high strength, low dew point, less dust and long service life;
  • The unique gas distribution design ensures that the gas distribution is uniform when the high temperature gas is heated and regenerated and the low temperature gas adsorption mode is adopted, so that the adsorbent at the edge of the adsorption tower is fully utilized, and the stroke tunnel flow effect is avoided;
  • Low pressure loss;

Product specifications

model air capacity
(Mm3/min)
Air nozzle diameter Heater power(KW) Blower power(KW) Weight of desiccant(kg) Equipment weight
(kg)
Equipment size
(mm)
SDXG-10 10.9 DN50 8 1.3 311 940 1400×1092×2292
SDXG-15 16 DN65 10 2.2 486 1100 1600×1247×2395
SDXG-20 22 DN65 12 2.2 606 1300 1700×1377×2435
SDXG-25 26.8 DN80 15 5.5 716 1800 1800×1403×2520
SDXG-30 32 DN80 18 5.5 860 2000 1800×1528×2544
SDXG-40 43.5 DN100 22 7.5 1158 2100 2000×1637×2640
SDXG-50 53 DN100 27 7.5 1422 2800 2100×1788×2722
SDXG-60 67 DN125 36 9 1608 3700 2300×1953×2825
SDXG-80 90 DN125 42 9 2436 4900 2720×2146×2940
SDXG-100 110 DN150 54 13 2926 5700 2810×2121×3081
SDXG-120 130 DN150 72 13 3476 7600 2996×2264×3140
SDXG-150 160 DN200 84 13 4710 11000 3470×2591×3433
SDXG-200 210 DN200 96 18.5 6160 15000 4700×2528×3532


Optional Accessories

  1. Blower
  2. Dew point display
  3. Dew point energy saving control
  4. Special voltage
  5. - 70 ℃ dew point
  6. Not limited to this
