Working condition and technical data
Maximum inlet air temperature：45℃
Ambient temperature range：5-50℃
Pressure dew point：-20℃ ~ -40℃
Regeneration gas consumption：3-5%
Cooling mode: air-cooled
Inlet oil content：≤0.1PPm
Power supply: 1-12nm 3 / min: AC 220 V / 50 Hz
15nm3 / min and above: AC 380V / 220V / 50Hz
Refrigerant: R22 (R407C / R134a optional)
Design condition: inlet temperature: 38 ℃
Ambient temperature: 38 ℃
Working pressure: 0.7MPa
Pressure loss: ≤ 5% of design pressure
Note: air cooled equipment above 80 cubic meters are split bare machines, other special requirements are welcome to customize.

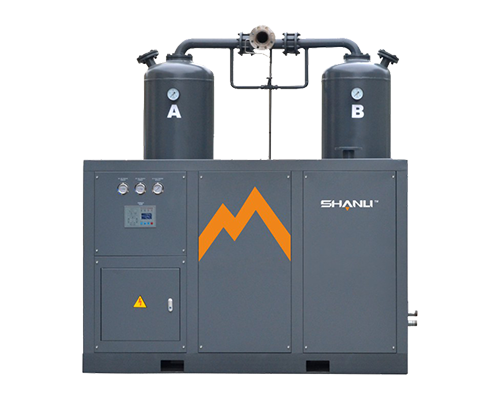

Low dew point:The combined type low dew point dryer can reach very low pressure dew point, which can reach below - 40 ℃ in general, and - 70 ℃ at least according to different user requirements;
Low energy consumption:The regeneration gas consumption of combined low dew point dryer is only 3% - 5%, which greatly saves the compressed air consumption;
It can provide compressed air with different dew points for different air consumption points;
All the operation switches and display instruments of the combined low dew point compressed air dryer are concentrated on the panel of the box plate. The refrigeration type compressed air dryer and the adsorption regeneration compressed air dryer can operate independently or simultaneously with cold and suction according to the customer's needs;
The gas-liquid separator adopts the patented three-stage separation mode: direct collision separation + low-speed centrifugal separation + stainless steel wire mesh demisting separation. 99.9% of liquid water is separated from the cooled compressed air. The second evaporation of textile moisture can ensure the low dew point quality of finished gas.
High quality switching valve, stable and reliable, can ensure the integrity of the working process and prolong the working life of components.
The refrigeration compressor adopts Danfoss of Denmark, Fusheng of Taiwan, Panasonic of Japan, Bitzer of Germany, Copeland of Germany, maneurop of France and other companies of fully closed or semi closed refrigeration compressor, which has stable operation, low noise, high cop, reliable performance and long power saving life;
